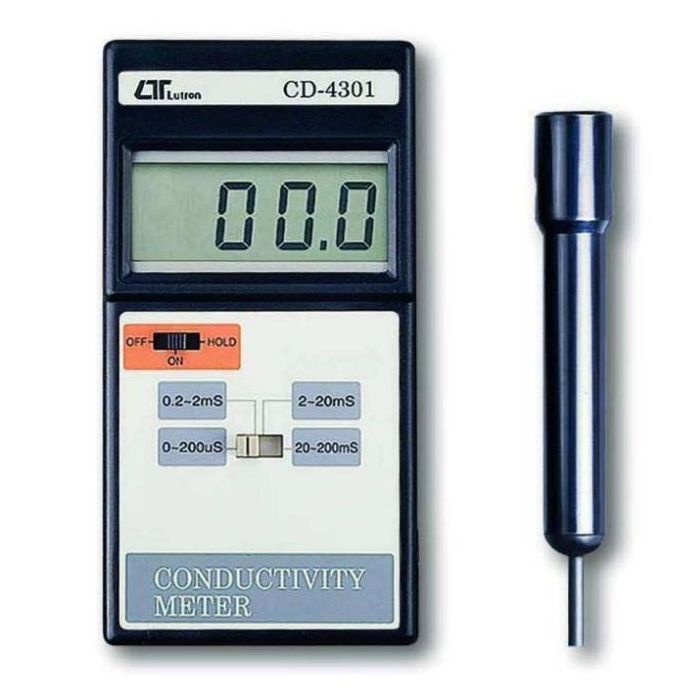

LUTRON Conductivity Meter EQL-CD-4301

SKU

EQL-CD-4301

In stock

Brand

Lutron (Taiwan)

Request Quotation

Ship to

Calculate Shipping Cost

Country

State/Province

Zip/Postal Code

Add to Compare

Overview

*The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.

*Multi-measuring ranges: 199.9 uS, 1.999 mS, 19.99 mS.

*DATA HOLD function for stored the desired value on display

*Large LCD display for low power consumption & clear read-out even in bright ambient light condition

*Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.

*Compact size, designed for easy carry out & operation.

*Built-in low battery indicator

* Wide applications: water contioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning

Details

GENERAL SPECIFICATIONS

Display

--18 mm (0.7") LCD, 3 1/2 digits., 3 1/2 digits, max. display 1999.

Measurement & Range

--199.9 uS, 1.999 mS, 19.99 mS, Data Hold

--*Build in 199.9 mS range, it only for reference, not specify the accuracy

Resolution

--0.1 uS for 199.9 uS range.

--0.001 mS for 1.999 mS range.

--0.01 mS for 19.99 mS range.

-- *uS : micro Simens, mS : milli-Simens

Accuracy ( 23 5 蚓 )

-- ± ( 2% F.S. + 1 d )

--* F. S. - Full scale

Over Range Indicator

--Display shows '1'.

Sampling Time

--Approx. 0.4 second.

Temp. Compensation

--Automatic, 0 to 50 (32 to 122 ).

Operating Temp.

--0 to 50 ( 32 to 122 ).

Operating Humidity

--Max. 80% RH.

Power Supply

--006P DC 9V battery(heavy duty type).

Power Current

--Approx. DC 5 mA.

Weight

--340 g/0.75 LB(w/battery & electrode).

Dimension

--168 x 80 x 35mm (6.6 x 3.2 x 1.2 inch).

Electrode Size

--Round, 22 mm Dia. x 120 mm length.

Accessories Included

-- Instruction Manual...........1 PC.

--Conductivity electrode.............1 PC.

--Carrying Case......................1 PC.

Calibrtaion Solution

--Optional, 1.413 mS calibration solution, CD-14.
